Nylon Roll Mill Jar

Nylon roll mill jar is a kind of superior grinding jar which does not contain any metal impurities. It is the best option for milling all kind of metal and high level pigment. Nylon mill jar is widely applied in lots of industries such as noble metal, electrical ceramic , magnetic material, pigment coating, and etc.
SHARE PRODUCT
Nylon Roll Mill Jar
Nylon Roll Mill Jar
Nylon Roll Mill Jar
Nylon Roll Mill Jar
Nylon Roll Mill Jar
Nylon Roll Mill Jar
Nylon Roll Mill Jar
Nylon Roll Mill Jar

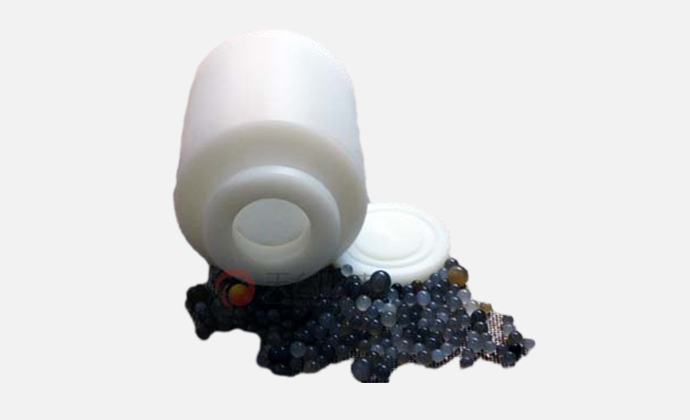

Overview of Nylon Roll Mill Jar
Nylon Roll Mill Jar

Is a kind of superior grinding jar which does not contain any metal impurities. It is the best option for milling all kind of metal and high level pigment. Nylon mill jar is widely applied in lots of industries such as noble metal, electrical ceramic , magnetic material, pigment coating, and etc.

Technical Parameters of Nylon Mill Jars for Roll Ball Mill
Parameter of Nylon Roll Mill Jar
Volumn of Jar Inner Diameter
(mm)
External Diameter
(mm)
Inner Depth (mm) Height of Not Containing Cover
(mm)
Total Height
(mm)
Weight (KG)
500ml 88 108 115 125 137 0.60
1L 108 128 153 165 177 0.974
1.5L 108 128 178 190 202 1.08
2L 134 158 183 195 207 1.65
3L 154 178 213 225 237 2.23
5L 173 197 258 270 282 2.93
10L 214 249 299 316 328 7.00
15L 266 298 307 325 340 8.75
20L 262 298 416 436 451 11.68
Remarks:1. Size deviation within ±2; 2. Weight deviation within ±0.2KG

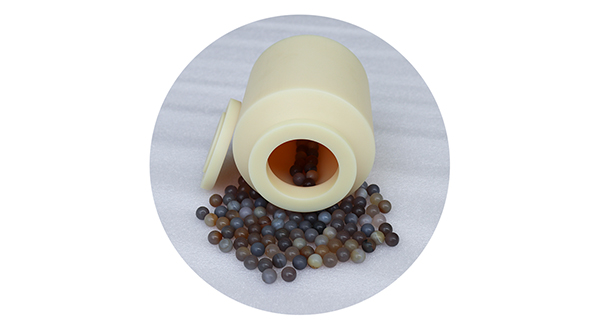

Feature of Nylon Roll Mill Jar
Nylon Roll Mill Jar

1.Pure white color, elegant apperance;



2.Non-metal material, no impurity in process of grinding.



3.Professional design, good workmanship and beautiful outlook.



4.High strength, good tenacity, and good tightness.
